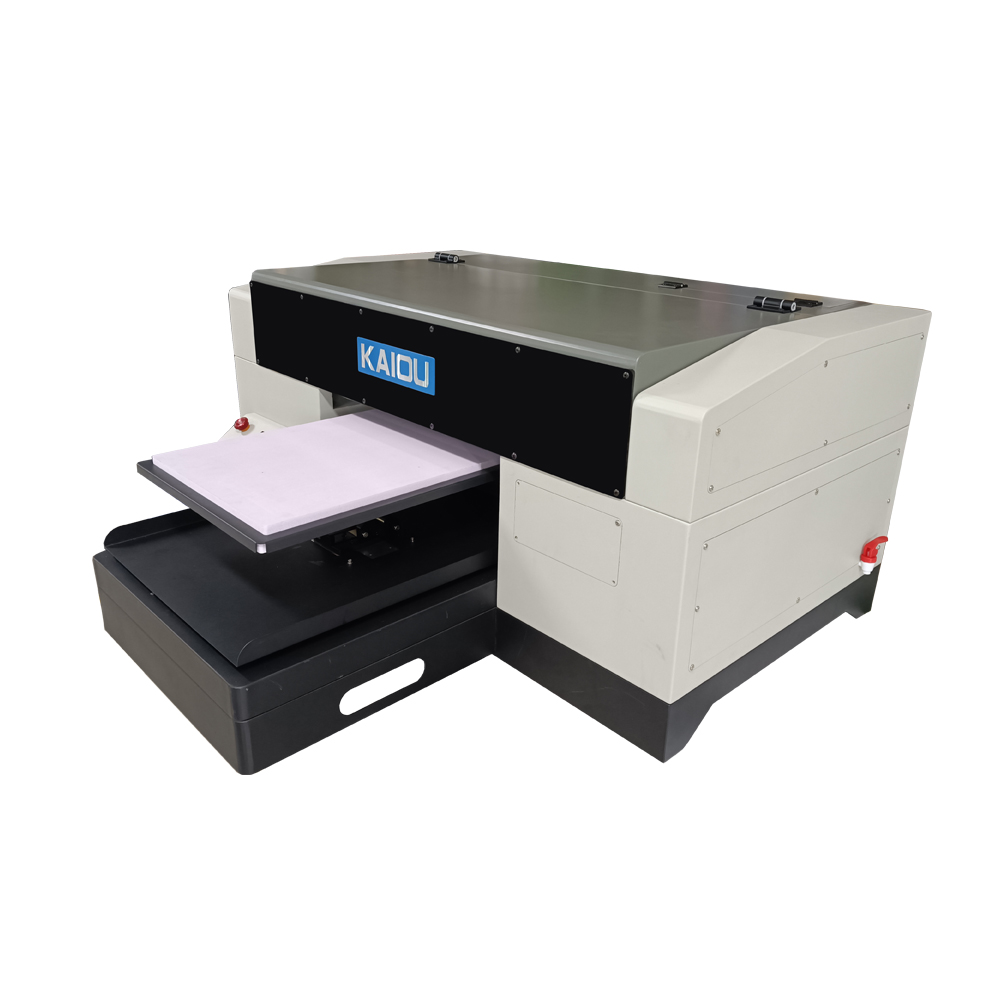

dtg t-shirt printing machine Single platform fast large format DTG printer

Availability:
Quantity:
  • KAIOU

production capacity Actual capacity: A4 size pattern 4PASS: dark cloth 45pcs/hour, light color cloth 60pcs/hour



sprinkler Nozzle configuration: Epson XP600*2




Printing accuracy: 720*1440 720*2160
Print Lifting height: 3-70mm

Print size: 40*50cm (maximum area)

Applicable fabrics: Pure cotton or blended fabrics with a higher proportion of cotton




Machine size: 1095mm+1175mm+545mm
machine Machine weight: 120KG

Platen size: 40*50CM

Number of platens: 1



ink Ink Type: Imported environmentally friendly paint ink

Ink Color: Cyan, Magenta, Yellow, Black+White



software RIP software: RIIN-special RIP software (standard) RIIN-T-shirt special edition RIP software (optional)

operating system: Windows7Windows10




Rails: Silver rail
operating system Motor: Integrated Servo Motor

Ink supply method: Visual automatic ink supply, intelligent automatic white ink circulation system

Cleaning method: Fully automatic cleaning system, convenient separate cleaning and maintenance system

Moisturizing method: Non-contact automatic moisturizing




Ambient temperature: 18℃~25℃(best)
working environment Relative humidity: 65%~85% (best)

power supply: AC220V

DTG单工位详情页_03

Crafted with precision and care, the DTG Pure Cotton Direct-to-Garment Printer is the ultimate tool for textile printing professionals. Its user-friendly interface and intuitive controls make it easy to use, while its durable construction ensures long-lasting performance.

Invest in the DTG Pure Cotton Direct-to-Garment Printer today and experience the ultimate in textile printing technology. With its exceptional features and superior quality, this printer is the perfect choice for businesses looking to take their printing capabilities to the next level.

DTG单工位详情页_04DTG单工位详情页_05

Introducing our state-of-the-art DTG Printer, designed to revolutionize your printing experience. With its professional-grade features, this printer allows you to effortlessly print on a wide range of fabrics containing over 50% cotton content.


Thanks to its advanced liquid processing technology, you can now achieve exceptional print quality on various textiles, ensuring that your printed garments exude a high-end, breathable finish.


Experience the convenience of direct-to-garment printing like never before. Elevate your business to new heights with our DTG Printer, the ultimate solution for all your fabric printing needs.

DTG单工位详情页_06DTG单工位详情页_07DTG单工位详情页_08DTG单工位详情页_02DTG单工位详情页_01
